PRESS-FIT
- UNIPRESS 500 M MANUAL PRESS-FIT
- UNIPRESS 500 E SEMI-AUTOMATIC PRESS-FIT
- UNIPRESS 1000 C FULL-AUTOMATIC PRESS-FIT
- UNIPRESS 2000 XL Full-Automatic Pick & Place Press-Fit System
- UNIPRESS 2000 XL FULL-AUTOMATIC PICK AND PLACE FOR INSERTING PRESS-FIT

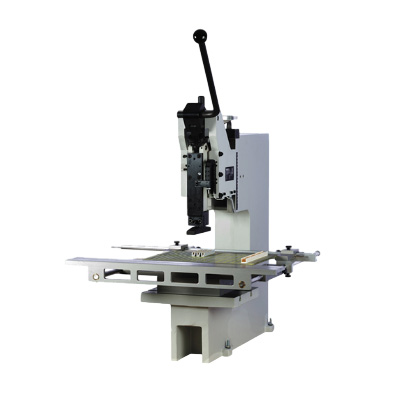

UNIPRESS 500 M MANUAL PRESS-FIT
⭐ 1. Ideal for Prototyping and Repair Work
Perfect for prototype production, small batches, and repair applications as a flexible backup solution.
⚡ 2. Strong Press Force with Simple Manual Operation
Provides up to 32 kN press force with easy lever operation, ensuring reliable insertion without complex automation.
🚀 3. Flexible Positioning with XY Table
Manual XY table allows precise positioning of PCB and supports various press-fit connectors and tooling.

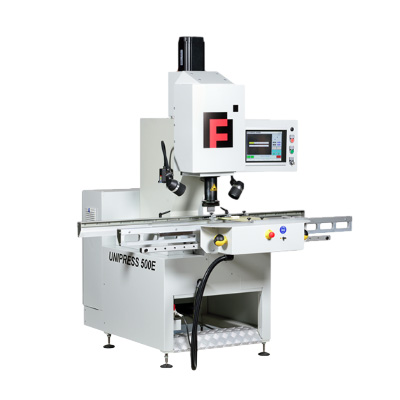

UNIPRESS 500 E SEMI-AUTOMATIC PRESS-FIT
⭐ 1. Semi-Automatic Operation for Higher Efficiency
Combines manual loading with automated positioning and press cycles, improving productivity while maintaining operator control.
⚡ 2. High Press Force with Servo Control
Provides up to 50 kN (option up to 100 kN) with precise servo-controlled motion for accurate and reliable insertion.
🚀 3. Automatic Positioning and Process Control
Features automatic board positioning and insertion force monitoring, ensuring consistent quality and reducing operator error.

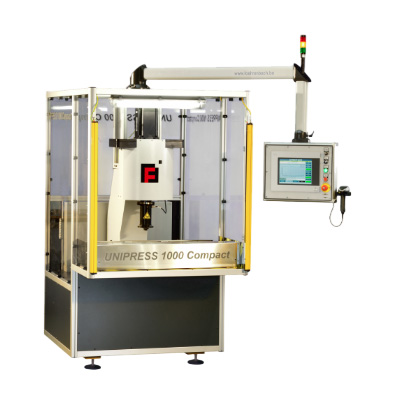

UNIPRESS 1000 C FULL-AUTOMATIC PRESS-FIT
⭐ 1. Fully Automatic Operation for Maximum Productivity
Automates board loading, positioning, and press-fit process, significantly reducing labor and increasing production efficiency.
⚡ 2. High Precision with Force Monitoring
Equipped with insertion force control system to ensure accurate and consistent press-fit quality for every cycle.
🚀 3. Consistent Quality and Reduced Human Error
Automated positioning and process control minimize operator influence, ensuring stable and repeatable results in high-volume production.

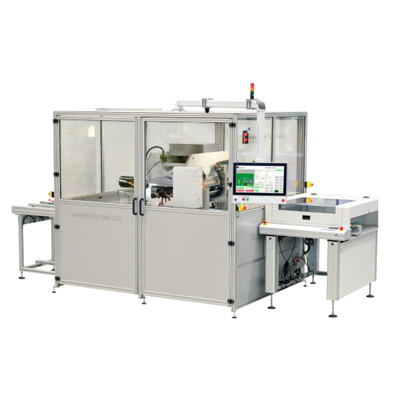

UNIPRESS 2000 XL Full-Automatic Pick & Place Press-Fit System
⭐ 1. Fully Automatic Pick & Place + Press-Fit Integration
Combines connector picking, positioning, and press-fit insertion in one fully automated inline system, greatly reducing manual handling and labor.
⚡ 2. High Precision with Controlled Insertion Process
Servo-controlled press with force monitoring ensures accurate insertion and consistent quality for every PCB.
🚀 3. Designed for High-Volume Production
Optimized for continuous inline production with automatic board positioning and handling, enabling stable and repeatable high-throughput manufacturing.

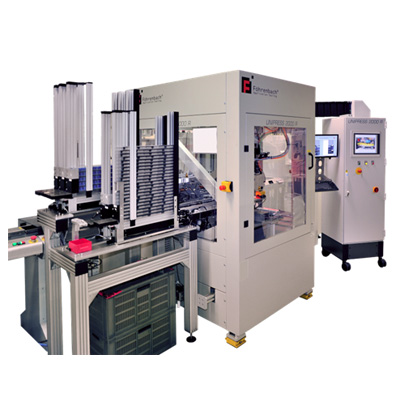

UNIPRESS 2000 XL FULL-AUTOMATIC PICK AND PLACE FOR INSERTING PRESS-FIT
⭐ 1. Fully Automatic Pick & Place Operation
Automatically picks connectors and inserts them into PCB, reducing manual work and significantly increasing production efficiency.
⚡ 2. High Precision with Servo Press System
Servo-driven insertion (up to ~40 kN) ensures accurate positioning and reliable press-fit quality for every cycle.
🚀 3. Advanced Force Monitoring & Quality Control
Force-distance control system checks insertion process in real time, detects errors, and guarantees consistent assembly quality.
UNIPRESS 500 M
MANUAL PRESS-FIT
UNIPRESS 500 E
SEMI-AUTOMATIC PRESS-FIT
UNIPRESS 1000 C
FULL-AUTOMATIC PRESS-FIT
UNIPRESS 1000 C
FULL-AUTOMATIC PRESS-FIT
UNIPRESS 2000 XL
FULL-AUTOMATIC PICK AND PLACE FOR INSERTING PRESS-FIT
